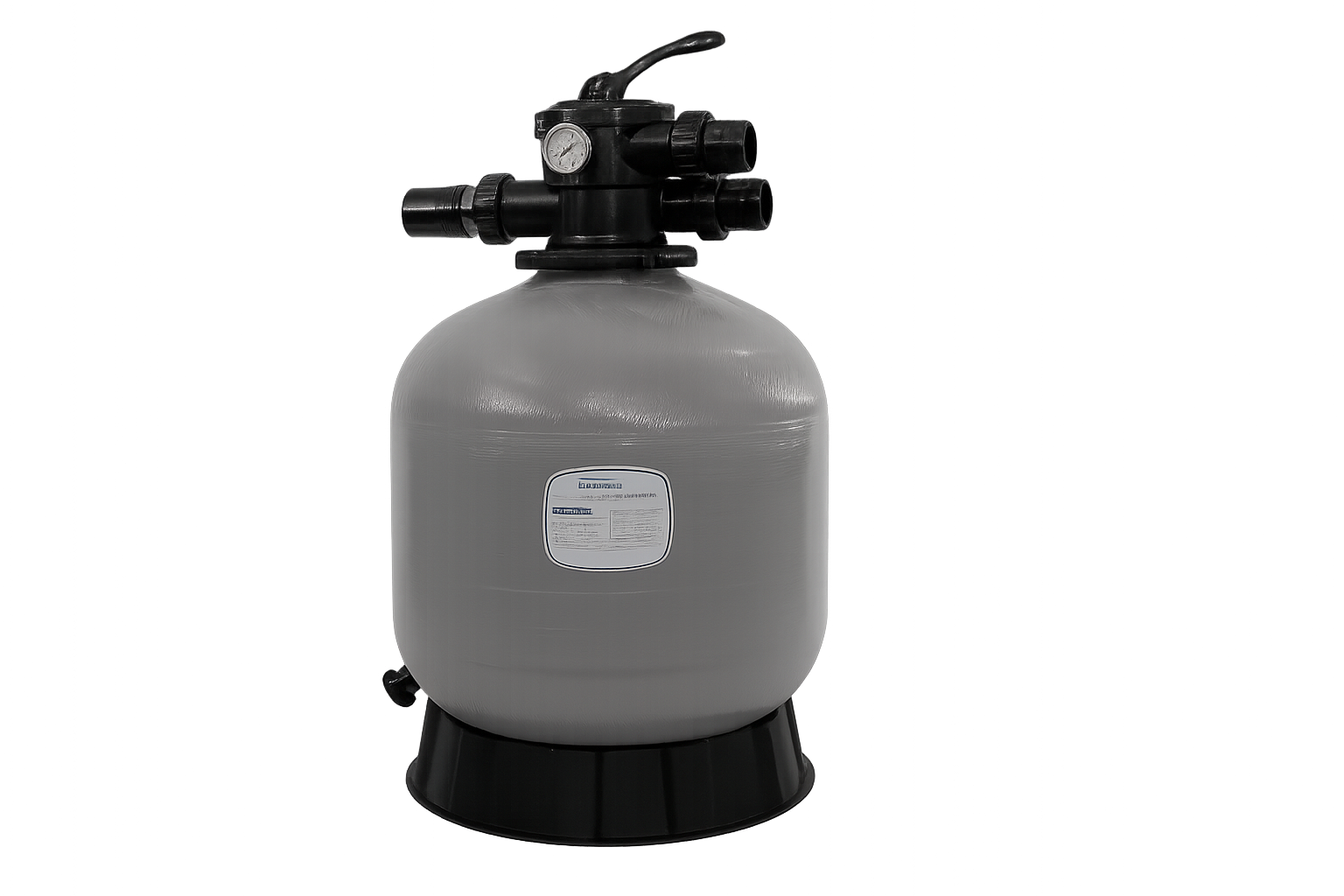

Titan Fibreglass Pool Filter Series (Z)

Description

The Titan Fibreglass Pool Filter Series is designed specifically for residential pool owners seeking reliable, efficient, and low-maintenance filtration. Crafted from high-strength fibreglass-reinforced polyester, each Titan filter delivers exceptional durability, chemical resistance, and long service life—even in harsh outdoor environments. Its corrosion-proof body and precision-moulded tank construction make it ideal for backyard pools and spas of all sizes.

Available in a range of sizes from 25” to 36” diameter, the Titan Series supports flow rates up to 520 LPM, with filter surface areas ranging from 0.32 m² to 0.64 m². A top-mounted or side-mounted multiport valve offers simple and intuitive control over filtration, backwashing, and rinsing. Compatible with sand, glass, or eco-friendly media options, the Titan filter ensures crystal-clear water with minimal energy consumption and maintenance effort.

🔧 Key Features

• Residential-Grade Performance: Engineered for family pools and spas.
• Corrosion-Resistant Fibreglass: Built to withstand UV, salt, and chemical exposure.
• Multi-Media Compatibility: Use with sand, glass, or alternative filter media.
• Simple Operation: Multiport valve enables easy maintenance and control.
• Whisper-Quiet Flow: Designed for quiet, efficient water movement.

  vering the models you’ve inquired about:

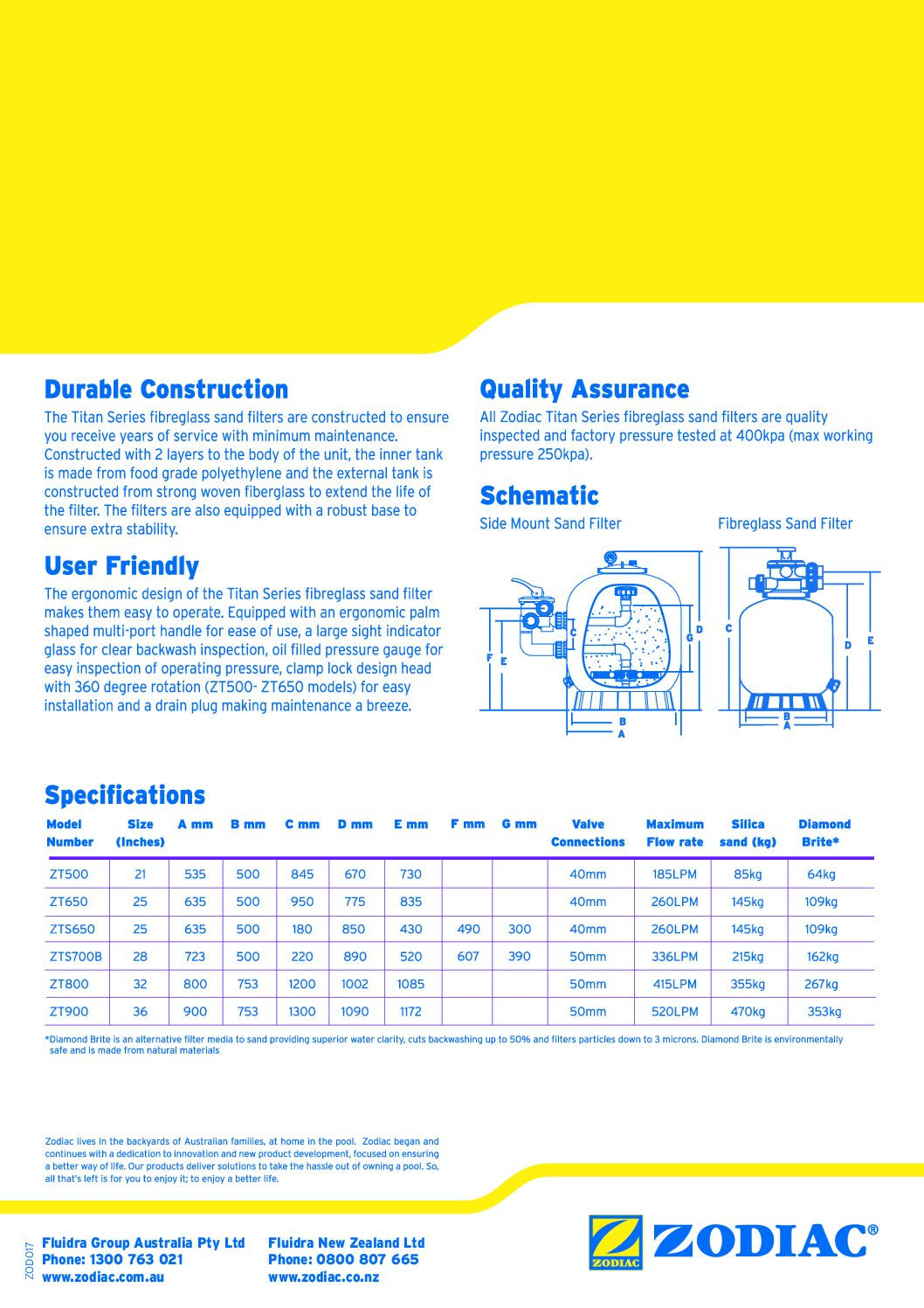

  Model	Connections (mm)	Outside Diameter (mm)	Tank Height (mm)	Filter Area (m²)	Max Flow (LPM)	Sand Required	Coarse Glass Media	Fine Glass Media
  ZT500 (21″)	40	535	845	0.20	185	85 kg	64 kg	N/A
  ZT650 (25″)	40	635	950	0.32	260	145 kg	109 kg	N/A
  ZT650B (25″)	50	635	950	0.32	260	145 kg	109 kg	N/A
  ZT700 (28″)	50	710	1020	0.40	325	210 kg	158 kg	N/A
  ZT800 (32″)	50	800	1200	0.50	415	355 kg	267 kg	N/A

  Additional Features:

  • Construction: Each filter features a dual-layer design with an inner tank made from food-grade polyethylene and an external tank constructed from strong woven fiberglass, ensuring durability and longevity.

  • Design: Ergonomic palm-shaped multi-port handle for ease of use, large sight indicator glass for clear backwash inspection, and oil-filled pressure gauge for easy monitoring of operating pressure.

  • Pressure Testing: All models are factory pressure tested at 400kPa, with a maximum working pressure of 250kPa.

  • Warranty: 10-year warranty on the tank and 1-year warranty on all other components.

  These filters are designed specifically for Australian conditions, providing efficient and reliable filtration for residential pools.

Notes:

• The ZT models feature a dual-layer construction with an inner tank made from food-grade polyethylene and an external tank of strong woven fiberglass, ensuring durability and longevity.

• The ZP models are constructed from corrosion and UV-resistant thermoplastic, making them suitable for small to medium-sized residential pools.

• Both series are equipped with ergonomic palm-shaped multi-port handles, large sight indicator glasses for clear backwash inspection, and are factory pressure tested to ensure quality
