Description
The AstralPool AHP Series delivers commercial-grade heating and cooling performance for pools of all sizes — from swim schools and hotels to aquatic centres and public pools. Designed to perform in Australian conditions, this range combines reliability, energy efficiency, and corrosion-resistant construction.
🌟 Key Benefits
- Heavy-Duty Durability: Powder-coated cabinets, epoxy-coated coils, and titanium heat exchangers ensure long-term corrosion protection.
- Efficient Operation: Copeland scroll compressors and variable-speed fans reduce energy use while maintaining strong performance.
- Heating & Cooling: Year-round temperature control with heating up to 190 kW and cooling capacity up to 95 kW.
- Quiet Running: Acoustic pressure levels as low as 61 dBa at 1 m — ideal for noise-sensitive environments.
- Four-Season Engineering: Reliable performance from 7 °C ambient air, using eco-friendly R410A refrigerant.
🔧 Commercial Heat Pump Specifications
| Model | Pool Volume (m³) | Power Returned (kW) | Power Consumed (kW) | Avg. COP | Voltage Supply | Dimensions (W×D×H) mm | Noise Level @10m (Boost/Silent) |
|---|---|---|---|---|---|---|---|
| AP 190 kW Commercial Heat Pump | 380–450 | 190 | 32.8 | 5.8 | 415V / 3-phase | 2180 × 1080 × 2060 | 67 dB(A) |
| AP 145 kW Commercial Heat Pump | 290–350 | 145 | 25.5 | 5.7 | 415V / 3-phase | 2180 × 1080 × 2030 | 71 dB(A) |
| AP 120 kW Commercial Heat Pump | 240–290 | 120 | 21.0 | 5.7 | 415V / 3-phase | 2180 × 1080 × 2030 | 69 dB(A) |
| AP 95.0 kW Commercial Heat Pump | 190–240 | 95 | 17.3 | 5.5 | 415V / 3-phase | 2180 × 1080 × 2030 | 61 dB(A) |
| AP 58.0 kW Commercial Heat Pump | 110–140 | 58 | 12.8 | 4.5 | 415V / 3-phase | 1490 × 735 × 1130 | 61 dB(A) |
| AstralPool AP 47.0 kW Commercial Heat Pump | 90–110 | 47 | 9.4 | 5.1 | 415V / 3-phase | 1490 × 735 × 1130 | 61 dB(A) |
| SR Smith AP 38 kW Commercial Heat Pump | 70–90 | 38 | 7.5 | 5.1 | 415V / 3-phase | 1490 × 735 × 1130 | 61 dB(A) |
| SR Smith AP 65I Commercial Inverter Heat Pump | 120–150 | 65 | 11.8 | 5.5 | 415V / 3-phase | 1490 × 735 × 1130 | 61 dB(A) |
| SR Smith AP 130I Inverter Heat Pump | 260–310 | 130 | 23.6 | 5.5 | 415V / 3-phase | 2180 × 1080 × 2030 | 69 dB(A) |
| SR Smith AP 250I Inverter Heat Pump | 500–600 | 250 | 45.5 | 5.5 | 415V / 3-phase | 2180 × 1080 × 2060 | 71 dB(A) |
Notes:
-
Pool Volume Estimates: These are approximate values; actual requirements may vary based on factors like climate, pool usage, and insulation.
-
COP (Coefficient of Performance): Indicates the efficiency of the heat pump; higher values represent greater efficiency.
-
Noise Levels: Measured at a distance of 10 meters; actual noise may vary based on installation and surroundings.
📦 Models & Applications
- 47 kW: Ideal for medium pools and smaller commercial facilities.
- 58 kW: High-output for compact aquatic centres or school pools.
- 95 kW: Designed for large-volume pools and community centres.
- 120 kW: For heavy daily usage with maximum energy return.
- 145 kW: Heavy-duty reliability in resort and public settings.
- 190 kW: Peak performance for stadiums and aquatic facilities.
🔧 Engineering Details
- Refrigerant: R410A
- Power Supply: 3-phase 380–415 V
- Control: Integrated digital interface (WiFi optional on inverter models)
- Compressor: Copeland scroll – energy-efficient and quiet
- Plumbing: Water flow ranges from 15–62 m³/h depending on model
- Pipe Size: 2″ to 4″ connections (PVC compatible)
🌍 Built for Commercial Conditions
- Climate-tough design, suited to year-round operation across Australia.

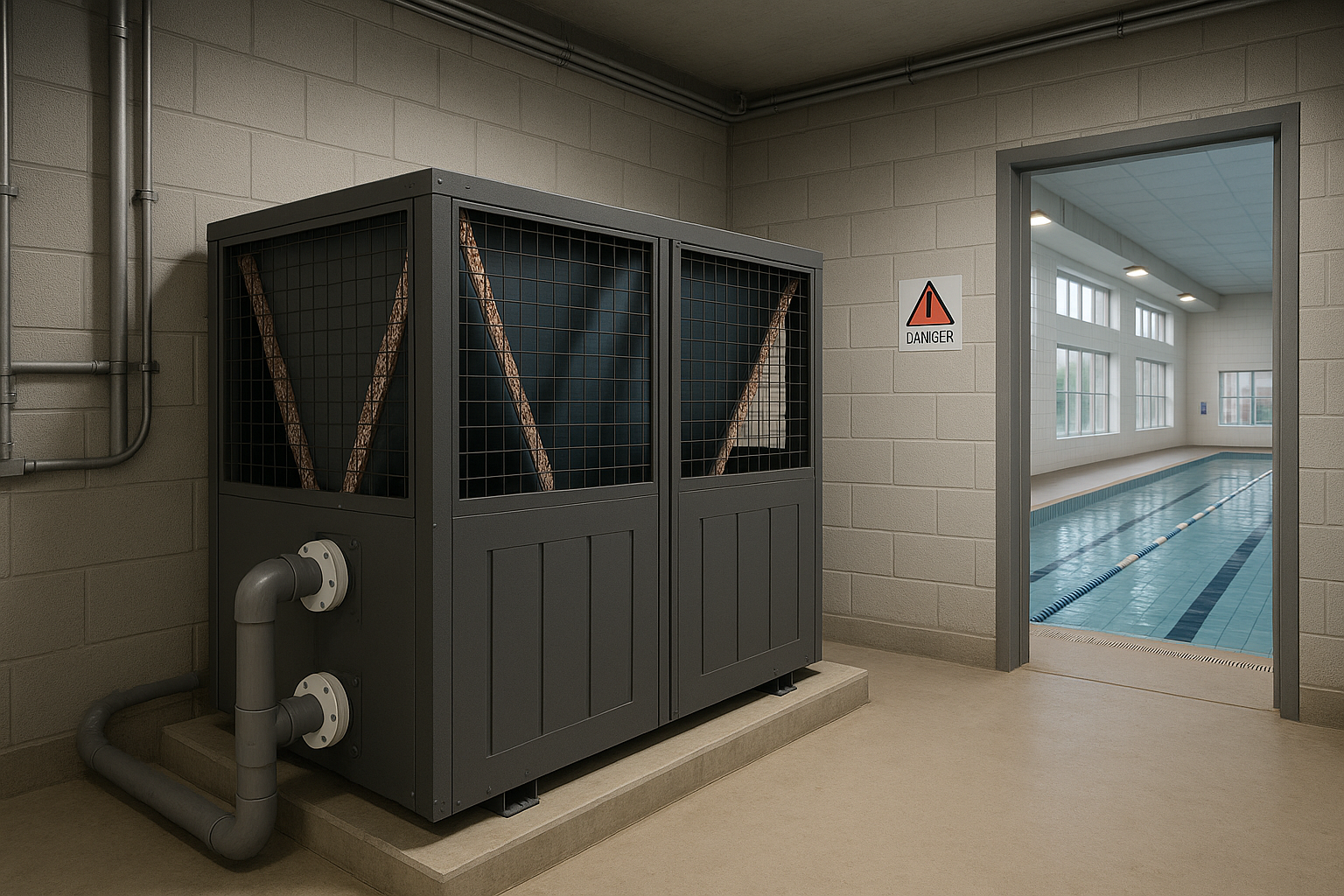

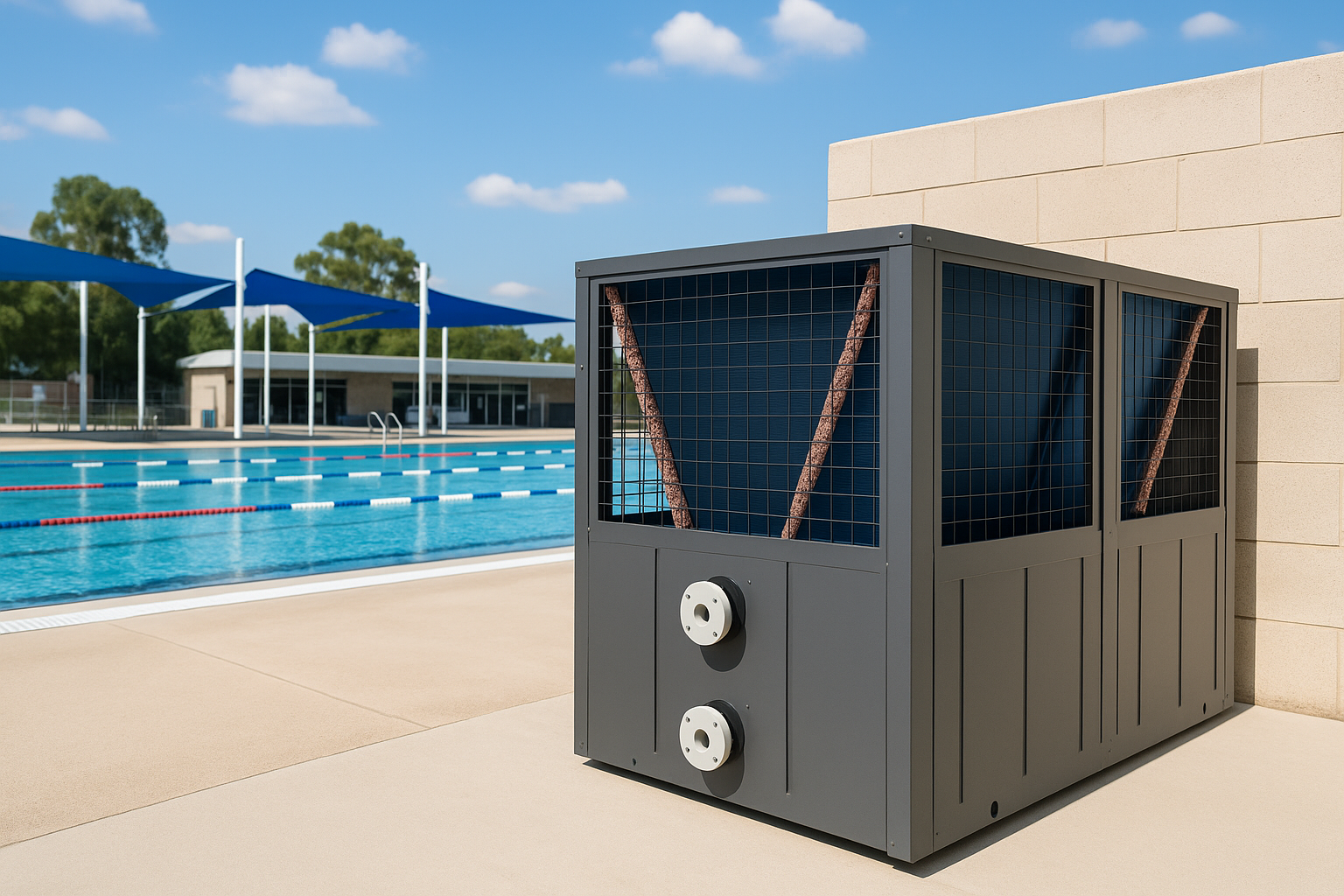

- Corrosion-resistant construction ideal for indoor or outdoor installs.
- Tested and certified to CE, RoHS, and REACH international standards.
📎 Resources & Support
- Full specification manuals and installation guides available on request.
- Use our sizing calculators or talk to our team to find the right model.
🔗 Ready to Get Started?
Choose the right AHP model below or contact our team for help planning your commercial heating solution. Trust AstralPool — powering Australia’s aquatic spaces with precision and performance.
