Description

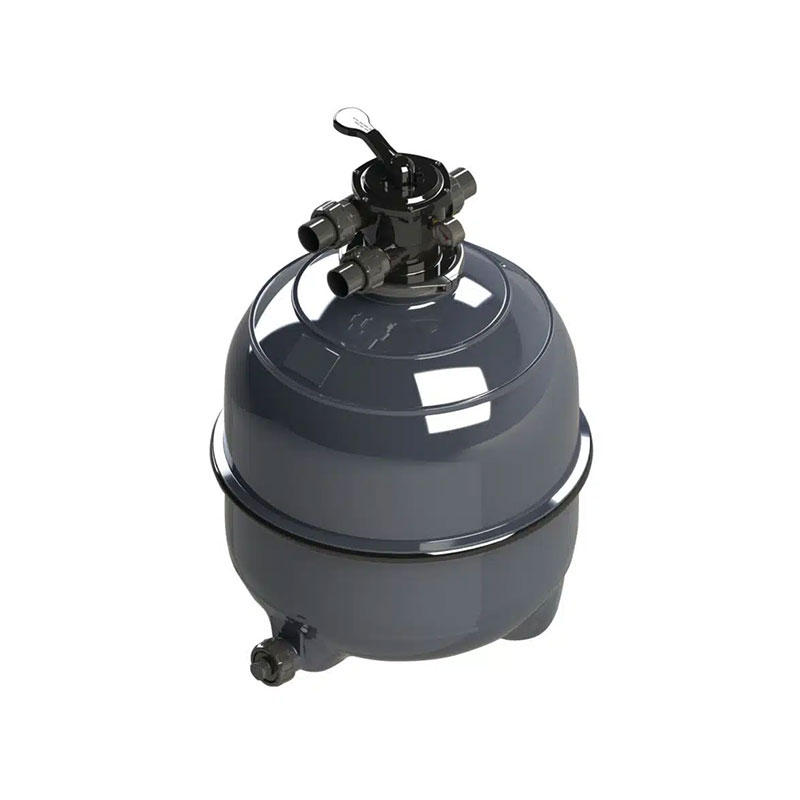

The CA Series Thermoplastic Media Filters are a robust, reliable solution for residential and light commercial pool filtration. Models CA 300, CA 340, and CA 400 are designed with durable, injection-moulded thermoplastic tanks that withstand harsh Australian conditions, chemical exposure, and UV degradation—making them a long-term investment for pristine water quality.
Equipped with a 50mm Multiport Valve (MPV), these filters provide efficient backwashing and flow control, ensuring ease of maintenance and optimal water turnover. The internal design maximises filtration surface area while maintaining compact external dimensions, making them suitable for tight pump shed spaces or equipment pads.
Each model in the range caters to different pool volumes, offering scalable performance to match your pool’s needs. The CA 300 is ideal for medium-sized pools, the CA 340 handles larger domestic installations, and the CA 400 is suited to higher-flow setups or small commercial pools.
Whether paired with sand or glass media, the CA Series delivers consistent, crystal-clear results with minimal effort. Trusted by pool professionals, these filters are known for their solid build, straightforward servicing, and exceptional value.
If you want tough, high-flow filtration without the fuss, the CA Series is your go-to.
| Feature | CA 300 | CA 340 | CA 400 |
|---|---|---|---|
| Tank Material | Thermoplastic | Thermoplastic | Thermoplastic |
| Valve Size | 50mm MPV | 50mm MPV | 50mm MPV |
| Filtration Media | Sand / Glass | Sand / Glass | Sand / Glass |
| Recommended Pool Size | Up to ~55,000L | Up to ~75,000L | Up to ~95,000L |
| Media Required | 85 kg Sand / 2 Bags Glass | 100 kg Sand / 3 Bags Glass | 120 kg Sand / 4 Bags Glass |
| Physical Size (HxW) | 940 x 520 mm | 1000 x 565 mm | 1110 x 600 mm |
| Max Operating Pressure | 250 kPa | 250 kPa | 250 kPa |
| Mounting Type | Base-mounted | Base-mounted | Base-mounted |
| Backwash Function | Yes | Yes | Yes |
| Inlet/Outlet Ports | 50mm | 50mm | 50mm |
| Installation Area | Medium | Medium-Large | Large |
| Warranty | 10 Years (Tank) | 10 Years (Tank) | 10 Years (Tank) |
